Falls from height remain the leading cause of workplace deaths in the UK, and access ladders are one of the areas where that risk is most direct.
Caged ladders exist to address this, providing a protective enclosure around the climb to reduce the chance of a fall from the side or back of the ladder.
Not every access ladder needs a cage. Whether one is required depends on factors including the vertical climb height, the presence of intervening landings and the structure the ladder serves.
While not intended as a substitute for an independent health and safety assessment, here is an overview of when a cage is needed, how they work and where their limitations lie.
What Is A Caged Ladder?
Caged ladders are vertical climbing devices that have a protective enclosure. Typically, the structure consists of a cage which is made up of a series of hoops. As a result, these enclosures are sometimes called ladder cages, ladder hoops or safety hoops. All three terms refer to the same protective structure of horizontal rings and vertical bars around the climb.

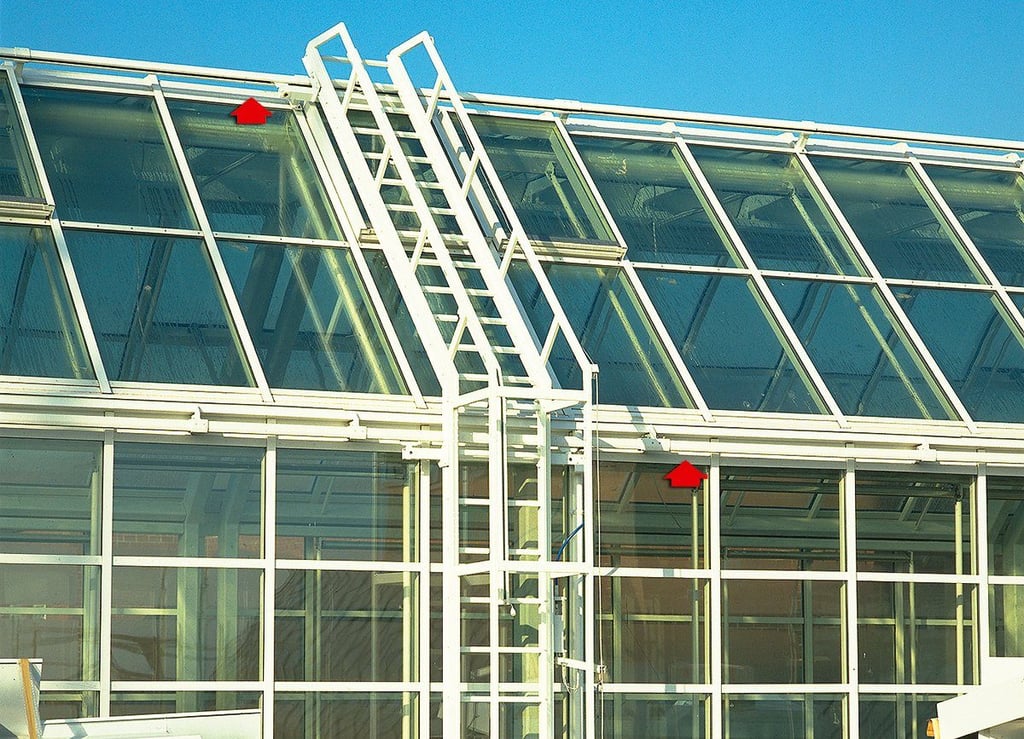

The most common usage of caged ladders is when there is a need to safely access a rooftop, especially as roofs can present some of the greatest dangers in terms of potential falls from a height. This is due to the heights involved as well as the presence of unprotected edges. By adding a cage to the ladder, the idea is to safeguard the ladder user.
Regulations for access ladders differ, with the United States falling under OSHA (Occupational Safety and Health Administration) and ANSI (American National Standards Institute).
However, the regulations which relate to access ladders in the UK are:
- Health and Safety at Work Etc. Act 1974
- Management of Health and Safety at Work Regulations 1999
- Work at Height Regulations 2005
- BS 4211:2005
What Is The Role Of A Ladder Cage?
The primary reason for adding a cage to a ladder is for fall protection.
Specifically, the cage is designed to act as a safeguarding measure due to significant heights being involved. One of the risks in working at a height is that the ladder operator could lose their balance. However, a cage acts as a physical barrier protecting the worker from free-falling off the side or back of the ladder.
The cage itself can also aid in climbing the ladder. In inclement weather conditions especially, the additional support can make it easier and safer to climb and descend the ladder.
While working at a height should always be avoided where possible, in the case of access ladders that require a cage, sometimes the structure (i.e. the roof) requires immediate access. Therefore, the cage can help reduce the risk of an injury or fatality as a result of a fall from a height.
When Is A Cage Needed?
A ladder cage is required under a specific set of circumstances outlined in the BS 4211:2005+A1:2008 safety standard:
- When an access ladder exceeds a vertical climb of 2.5 metres (8.2ft) and there is no intervening landing, it must have a cage or guardrail installed.
- Where a ladder run exceeds 9 metres in total height, the standard requires intermediate landings to break up the climb, with cages or guardrails applied to each individual section rather than the ladder as a whole.

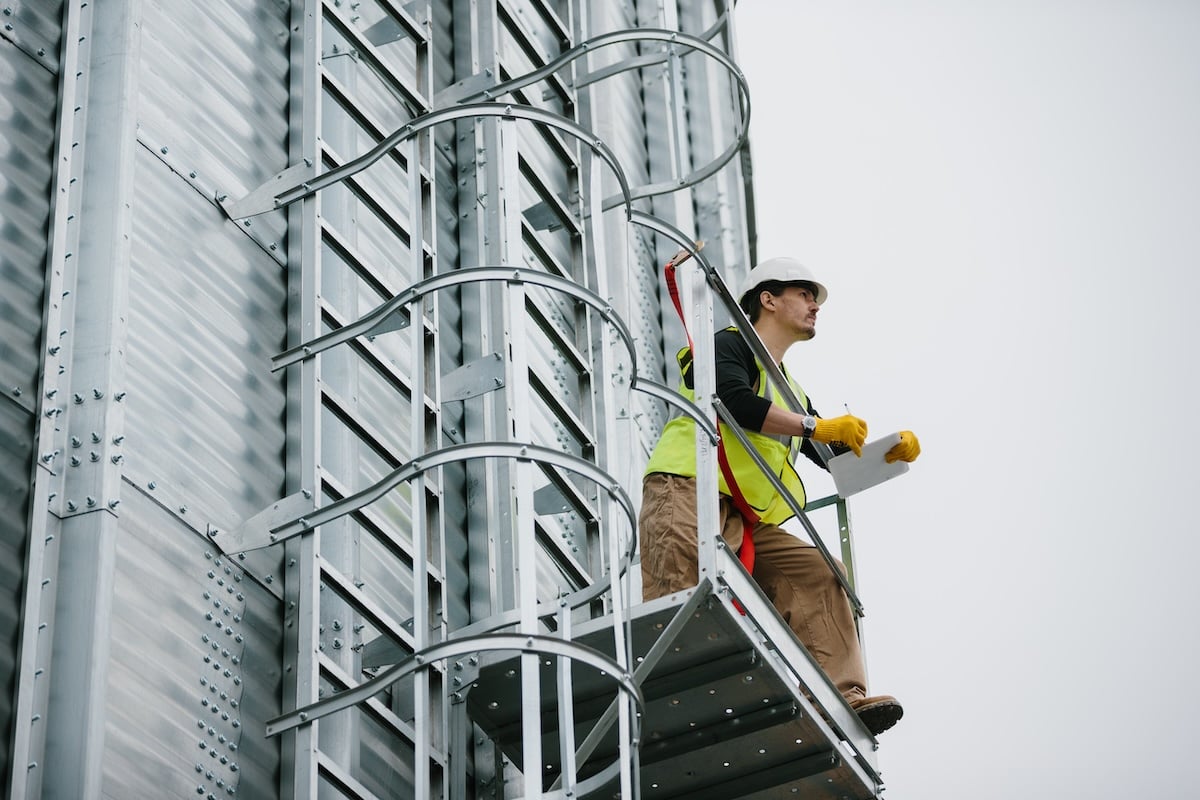

- Cages are typically specified for ladders providing access to roofs, chimneys, silos, bins and other high structures where sustained climbs and unprotected edges are present.
The 2.5 metre threshold applies to the section of ladder without a break, not the overall height of the structure. This means a ladder serving a 10 metre structure may still avoid the cage requirement if it is broken into shorter runs with landings between them.
As noted above, different countries (i.e. the United States or Australia) have their own safety standards relating to when a ladder cage is needed. That’s why it’s essential to consult the health and safety advice which applies specifically to your jurisdiction to ensure proper compliance.
In the UK, there are also various regulations about when an access ladder should be installed. Furthermore, there are strict rules relating to the installation and maintenance of fixed ladders and cages once fitted:
- Cages and hoops must be inspected as part of routine ladder inspections, with any deformation, corrosion or loose fixings reported and rectified before further use.
- Retrofitting a cage to an existing fixed ladder is possible in many cases, though the ladder’s structural fixings and stringers need assessing to confirm they can support the additional load.
- Where a ladder is being newly installed rather than retrofitted, specifying the cage at the design stage is more straightforward and avoids compatibility issues later.
Finally, the HSE has also issued guidance which states that “Duty holders should be aware that the hoops of a ladder alone may not be effective in safely arresting a fall without injury.” Therefore, employers have a responsibility to ensure they are complying with all required measures to prevent falls from a height, which may also include the use of other safety equipment such as personal fall-arrest systems.
Is A Cage Ladder Enough On Its Own For Fall Protection?
Not necessarily. While cages have traditionally been fitted to fixed ladders, guidance in the UK increasingly recognises that a cage alone does not reliably prevent or arrest a fall. It’s now common practice to pair a caged access ladder with a fall arrest system for a higher standard of protection, particularly on taller or higher-risk climbs.
Are Ladder Cages Being Phased Out?
In the United States, yes, at least for now. Under OSHA’s 2016 Walking-Working Surfaces standard, any fixed ladder installed after November 2018 and exceeding 24 feet in height must use a ladder safety system or personal fall arrest system rather than a cage. Existing caged ladders installed before that date were originally required to be retrofitted by November 2036, effectively phasing cages out entirely.
However, here in the UK, there is no equivalent mandated phase-out. BS 4211:2005+A1:2008 still permits cages as a compliant option for permanently fixed ladders. That said, the direction of thinking is similar to the US position. HSE guidance has already flagged that ladder hoops alone may not reliably arrest a fall, and UK employers are increasingly specifying personal fall arrest systems or ladder safety systems on new installations rather than relying on cages by default, particularly for taller or higher-risk structures.
The practical takeaway for UK employers is that a cage meeting BS 4211 remains a legitimate, compliant choice today. But where a ladder run is being newly installed or significantly refurbished, it’s worth weighing a fall arrest system against a cage at the specification stage rather than defaulting to what’s traditionally been used, especially given where international thinking on passive versus active fall protection is heading.
What Does Ladder Cage Design Typically Include?
A standard ladder cage design consists of horizontal hoops spaced at regular intervals, connected by vertical bars running the length of the climb. Dimensions and spacing are set out in standards such as BS EN ISO 14122-4, covering factors like hoop diameter, bar spacing, and the point at which the cage should begin and end relative to the ladder.
Cat Ladder Regulations UK
In the UK, cat ladders (also known as fixed vertical ladders) are governed primarily by the Work at Height Regulations 2005, which place a duty on employers to ensure that any means of access to height is suitably designed, installed and maintained to prevent falls. There’s no single “cat ladder law” as such, but several standards apply in practice.
BS EN ISO 14122-4 sets out the design requirements for fixed ladders used on machinery and industrial structures, covering rung spacing, width, and the point at which a safety cage or fall arrest system becomes necessary. As a general guide, fixed ladders exceeding around 2.5 to 3 metres in height typically require additional fall protection, such as a cage, rest platforms, or a vertical fall arrest system with a sliding anchor.
Employers are also required under the Provision and Use of Work Equipment Regulations (PUWER) to keep ladders properly maintained and inspected. In practice, this means any cat ladder providing regular access to height should be risk assessed, fitted with appropriate fall protection where needed, and checked periodically to remain compliant.
