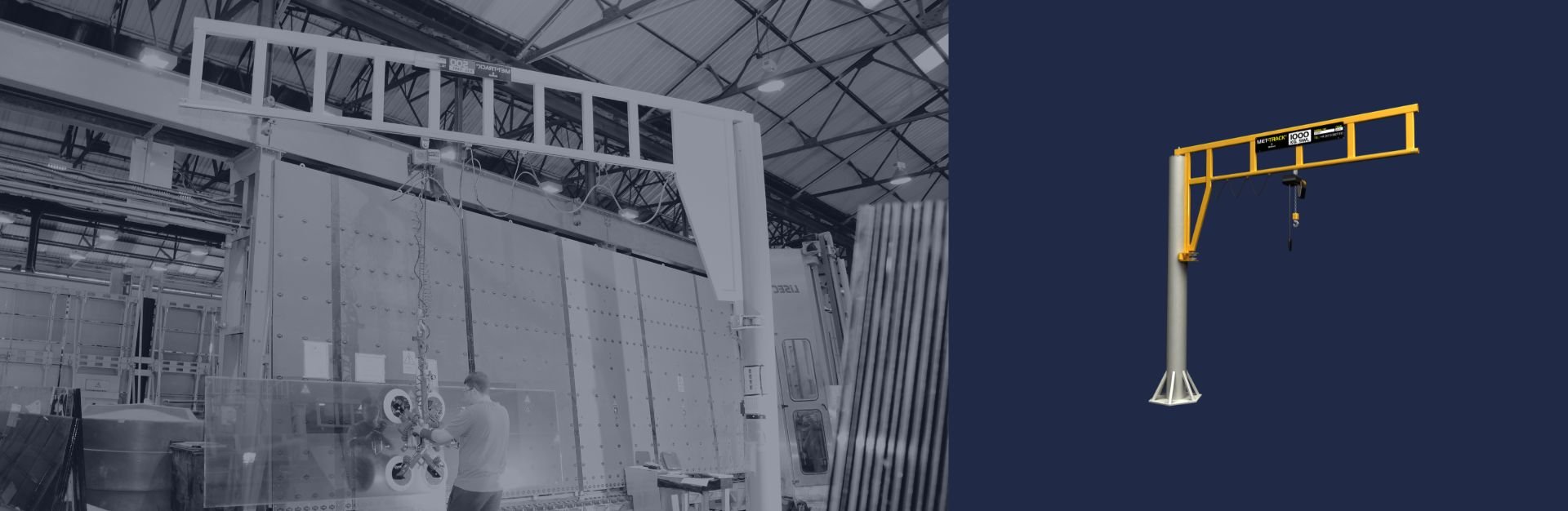

Jib Cranes

A range of standard and bespoke design jib cranes

from Metreel

UK Jib Crane Manufacturers & Suppliers

We design and install jib cranes that are tailored to your exact lifting requirements

Jib cranes reduce manual lifting risks in tight spaces. Offering up to 360° rotation and reliable hoist compatibility, our wall mounted, floor mounted and free standing jib cranes suit machine loading, assembly, maintenance and pallet handling, with optional weather protection for outdoor use.

Metreel is a leading jib crane manufacturer. Our team is based in the UK and we supply our jib cranes on a global scale.

Discover our jib cranes for sale on our website or give us a call on 0115 932 7010 to place an order.

Download our brochure

Take a look at our brochure today and find out more about our products

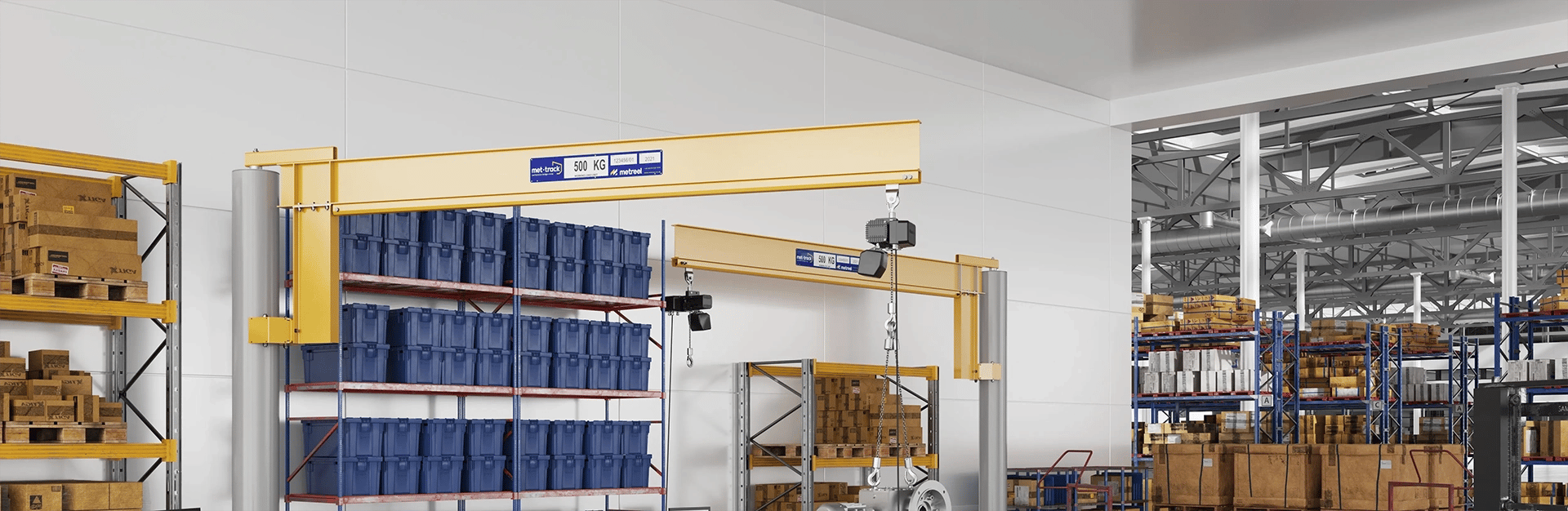

Freestanding Overbraced Jib Cranes

Features

  • Floor or wall-mount
  • Safe working loads (SWL): 125kg – 1000kg
  • Spans up to six metres
  • Load pin heights up to four metres
  • Arm rotation up to 270°
  • Standard finish – powder coated
  • Zinc plated, stainless steel or hot dip galvanised – available upon request



Options for the range include, in-track festoons, tag line festoons, vacuum hose festoons and secondary restraint hoist trolleys.

from Metreel
from Metreel

Free Standing Underbraced Jib Cranes

Features

  • Floor-mount
  • Safe working loads (SWL): 125kg – 500kg
  • Spans up to four metres
  • Load pin heights up to four metres
  • Arm rotation up to 360°
  • Standard finish – powder coated
  • Zinc plated, stainless steel or hot dip galvanised – available upon request



Options for the range include, in-track festoons, tag line festoons, vacuum hose festoons and secondary restraint hoist trolleys.

Wall Mounted Jib Cranes

Maximising your workspace by freeing up valuable floor space, Metreel wall mounted jib cranes are the perfect lifting solution for busy warehouses and production lines.

Wall mounted jib cranes are fixed to a structural wall or building column. Offering 180° rotation, they are particularly ideal for repetitive tasks such as machine loading, assembly work or similar lifting tasks whereby materials only need to move within a defined area.

Installation of a wall mounted crane typically involves securing the crane to a reinforced wall or column and fitting a rotating boom with a hoist. The cantilever design utilises both partial and full booms, ensuring it is a great option for maximising clearance in factories with multiple overhead obstructions.

Our wall mounted jib cranes can be seamlessly installed in high traffic areas of your facility. This solution delivers efficient movement and easy handling of loads without interfering with other equipment or workflows.

from Metreel
from Metreel

Floor Mounted Jib Cranes

Floor mounted jib cranes are installed directly onto a reinforced concrete foundation, making them a strong and independent lifting solution for facilities that need reliable material handling without relying on building walls or columns.

Offering full 360° rotation, a floor mounted jib crane is an ideal material handling option when heavier loads need to be moved around a workstation, production cell or loading area.

Floor mounted cranes are made from a solid steel mast that is anchored with heavy duty bolts, a rotating boom arm and an integrated hoist system. The robust design of Metreel floor mounted jib cranes provides smooth and efficient lifting for manufacturing, warehouses and maintenance operations.

Another key feature about our floor mounted jib cranes is that model dependent, they are suitable for indoor or outdoor use. This ensures excellent compatibility with various environmental conditions and business requirements.

Bespoke Design

As a leading jib crane manufacturer, Metreel specialises in bespoke jib cranes.

In scenarios where standard crane models don’t offer a perfect for your lifting requirements, a bespoke jib crane can be built to adapt to unique space constraints, unusual load capacities, limited headroom or specialised workflows.

Bespoke solutions may also require custom boom lengths, reinforced structures for heavier loads or modified mounting systems. Additionally, integration with specific hoists and controls.

Engineering the crane around the exact needs of the workspace, bespoke jib cranes from Metreel help maximise efficiency.

As with standard jib crane models, bespoke cranes can also improve workplace safety. Crucially, a bespoke jib ensures reliable lifting performance in industrial environments where an off-the-shelf jib crane would not provide the best fit.

from Metreel

Download our brochure

Take a look at our brochure today and find out more about our products

Understanding How Jib Cranes Work

A jib crane works through three coordinated motions. Rotation swings the boom around the mast or wall mount, covering the crane’s working arc. Transverse motion moves the trolley and hoist along the length of the boom, positioning the load horizontally. Lift motion raises and lowers the load vertically via the hoist.

On manual units, these motions are driven by a winch, chain hoist or pulley system operated by hand. Powered units use motorised controls to handle rotation, trolley movement and lifting, often via a pendant or wireless control. Between the three motions, the crane can pick up a load, swing it through its arc and set it down precisely within its working radius.

Jib Crane Components

A jib crane works through three coordinated motions. Rotation swings the boom around the mast or wall mount, covering the crane’s working arc. Transverse motion moves the trolley and hoist along the length of the boom, positioning the load horizontally. Lift motion raises and lowers the load vertically via the hoist.

On manual units, these motions are driven by a winch, chain hoist or pulley system operated by hand. Powered units use motorised controls to handle rotation, trolley movement and lifting, often via a pendant or wireless control. Between the three motions, the crane can pick up a load, swing it through its arc and set it down precisely within its working radius.

Key Components of a Jib Crane

Understanding the main parts of a jib crane helps when specifying the right system for your facility.

Boom: The horizontal arm that extends from the mast or wall bracket. The hoist and trolley travel along the boom, allowing loads to be moved in and out within the crane’s working radius.

Mast: The vertical support structure that the boom attaches to. On floor-mounted systems, the mast is anchored directly to the facility floor. On wall-mounted systems, it is secured to an existing structural wall or column.

Trolley: Runs along the length of the boom, carrying the hoist and allowing horizontal (transverse) movement of the load.

Hoist: The lifting device that raises and lowers the load. Hoists can be manual, electric or pneumatic depending on the application.

Rotation mechanism: Allows the boom to swing around the mast through a defined arc. Depending on the crane type and mounting position, rotation ranges from 180 degrees to a full 360 degrees.

Rotation stop: Limits the swing of the boom where an obstruction such as a wall or column is present, preventing collision.

Collector rings: Fitted to the top or bottom of the mast on powered jib systems, these allow continuous 360-degree rotation without cable tangling.

Types of Jib Crane

Jib cranes can be used both inside and outside which means that this type of lifting equipment is a worthwhile addition to any industrial environment. There are many different styles and types of jib crane which means that no matter the use case, you’ll find them to be suited to the task at hand, whether that’s a compact wall-mounted unit for a maintenance bay or a heavy duty floor-mounted system for a busy production line.

Floor Mounted Jib

The most common configuration. The mast is anchored directly to the facility floor, providing a freestanding lifting station that does not rely on existing building structure. Floor-mounted jib cranes typically offer rotation of up to 270 degrees, with full 360-degree rotation achievable on certain designs. This makes them well suited to workstations where loads need to be repositioned across a wide arc.

Because they require a secure foundation, floor-mounted jib cranes are a more permanent installation. They can be positioned independently of walls and columns, giving flexibility in facility layout.

Wall-Mounted Jib

Where floor space needs to remain clear, a wall-mounted jib crane attaches to an existing structural wall or column. Rotation is typically between 180 and 200 degrees depending on the mounting position and surrounding obstructions. Wall-mounted systems are a practical choice for maintenance bays, assembly lines and fabrication shops where the lifting zone is concentrated along one side of a workspace.

Over-Braced Jib

You’ll see that an over-braced jib crane has a support brace that helps to add structural support to the boom/track. This brace is situated over the top of the track and will share the stress and load of the items you’re lifting. This not only makes the crane stronger but will also help to increase durability.

Under-Braced Jib

The under-braced variant positions the support brace beneath the boom rather than above it. This configuration is better suited to low headroom environments where an over-braced design would reduce available lifting height. Performance is broadly comparable to the over-braced configuration, with the primary difference being suitability for restricted vertical clearance.

Where are Jib Cranes Used?

Jib cranes are used across a wide range of industrial and commercial environments, including:

  • Manufacturing and assembly – for lifting components onto machinery or assembly fixtures at individual workstations
  • Engineering workshops – for handling tooling, moulds and fabricated parts within a machining bay
  • Loading docks and warehouses – for positioning loads during unloading or staging operations
  • Maintenance areas – for lifting equipment for inspection, repair or replacement without disrupting the wider facility
  • Production lines – for managing high-frequency, repetitive lifts where ergonomic handling reduces operator fatigue and injury risk



HSE data indicates that manual handling accounts for over 20% of non-fatal workplace injuries in manufacturing and warehousing. Jib cranes reduce reliance on manual lifting by providing a controlled, mechanical means of repositioning loads within a workstation.

Jib Cranes FAQs

Interested in purchasing a jib crane, but have some questions about what they can offer for your industrial application? We’ve answered some of our top customer queries below.

For anything else, or to place an order with us, please get in touch on 0115 932 7010.

What is a Jib Crane?

A jib crane is a lifting device that handles loads within a fixed working radius, using a horizontal arm (the boom or jib) mounted on a vertical post, wall bracket or column.

A hoist and trolley run along the boom, allowing the load to be lifted, lowered and moved horizontally. Because the boom is fixed to a rotating mount, the whole assembly can swing through an arc, typically 180 to 360 degrees depending on the configuration. This design gives the crane coverage which spans a defined circular area rather than a full room or building.

Jib cranes are typically used in manufacturing, engineering and warehouse settings for repetitive, localised lifting, such as loading parts onto machinery, handling materials at a single workstation or positioning loads during unloading. They’re a lower-cost, lower-footprint alternative to a full overhead crane system when the lifting requirement is confined to one area rather than spread across a facility.

What Are Jib Cranes Used For?

Jib cranes are used for lifting and moving loads within a fixed working arc. They are particularly suited towards repetitive lifting tasks in a specific area such as a workstation, loading bay or production line. This is because they work well in confined or busy areas where a mobile crane or overhead gantry wouldn’t be practical.

How Much Weight Can A Jib Crane Lift?

At Metreel, the jib cranes we manufacture are designed to safely lift anywhere from 125kg up to 1,000kgs. Every jib crane is made to your exact lifting specifications, with floor and wall mounted jibs capable of lifting varying weights.

To discuss your lifting requirements with our team, please get in touch. Should your required lifting capacity exceed 1,000kgs, we can suggest one of our other types of cranes instead.

What Is A Floor Mounted Jib Crane?

A floor mounted jib crane is a lifting device that is fixed directly to the floor of a workshop, warehouse, or production facility. It consists of a vertical mast anchored to a concrete foundation, with a horizontal arm (known as the jib) that extends outward and supports a hoist or lifting mechanism. The jib can typically rotate through an arc of up to 360 degrees, giving operators excellent coverage across a defined working area without the need for an overhead crane runway.

How Much Space Does A Floor Mounted Jib Crane Require?

One of the advantages of a floor mounted jib crane is its relatively compact footprint. The mast itself takes up minimal floor space, and the working radius of the jib determines the coverage area. When specifying a system, it is important to account for the full sweep of the jib arm to ensure there are no obstructions within the working arc. Metreel’s team can assess your facility and recommend the most appropriate jib length and rotation range for your available space.

How Do Jib Cranes Improve Workplace Safety?

Jib cranes certainly do improve workplace safety, particularly in regards to reducing manual lifting of heavy tools or materials.

As we all know, manual lifting poses the risk of injury especially for lifting heavy loads or even for smaller repetitive lifting tasks. Jib cranes can be transformative for workplace safety as they provide powered or assisted lifting with a hoist, which in turn can greatly reduce strains, worker fatigue and more serious injuries from occurring.

Are Jib Cranes Cost-Effective For Small Businesses?

Based on the jib crane installations we’ve carried out for small businesses across the globe, the feedback we’ve received from our customers is that they absolutely are cost effective. More than this, our customers find that jib cranes provide an excellent return on their investment over the longer term.

The reason why jib cranes are popular is because they increase material handling capabilities even when there are space constraints. All of which solves common challenges such as safety risks, workflow inefficiencies, precise lifting requirements and high operating costs.

With various types to choose from and even the ability to customise your jib crane, Metreel can ensure your jib crane meets the exact needs of your small business.

What Problems Do Jib Cranes Solve In Warehouses?

In busy warehouse environments, space is often extremely limited. By providing localised lifting, jib cranes save valuable floor space by minimising equipment congestion. Jib cranes also handle repetitive lifting tasks more consistently, which increases productivity and reduces bottlenecks in high-traffic areas.

Another major benefit of installing a jib crane in a warehouse is the reduced need for manual lifting of heavy or awkward loads, which in turn lowers the risk of worker injuries and fatigue.

Offering 180°to 360° rotation, jib cranes streamline workflow, allowing materials to be moved quickly between workstations or onto storage racks without relying on forklifts or overhead bridge cranes. Overall, jib cranes help warehouses operate more safely, efficiently and cost-effectively.

If materials only need to move within a small radius (machine loading, welding cell, assembly bench), a jib crane is ideal.

Free-Standing Vs Wall-Mounted Jib Crane: Which Should I Choose?

Metreel jib cranes are available in free standing and floor mounted models. As you might expect, these different formats exist to cater to varying workspace types and load requirements.

Free standing jib cranes are ideal for applications that call for full 360° rotation, higher load capacities. Likewise, when your building’s walls or columns cannot support a crane. Free standing jibs will require a reinforced foundation but offer maximum flexibility and coverage.

In contrast, wall mounted jib cranes offer 180° rotation. They are ideal when floor space is limited and are best suited to lifting moderate loads, including when the lifting task is repetitive. For this reason, wall mounted jib cranes suit workstations or production line work. A wall mounted jib crane relies on strong building walls or columns for support.

If you are currently deciding between a floor vs a wall mounted jib crane, allow the Metreel team to help. Our crane experts can guide your decision based on your space constraints, rotation needs, load capacity and installation feasibility.

What Is The Best Crane Solution For Small Workstations?

Jib cranes are a fantastic option for localised and repetitive lifting tasks in small spaces such as workstations. Ideal for individual workspaces, jib cranes can provide 180° to 360° rotation to suit different use cases.

In terms of adapting to your space restrictions, jib cranes come in different formats including wall mounted jib cranes, floor mounted jib cranes and articulating jib cranes. Each design is geared towards different space limitations.

What Lifting Equipment Works In Tight Spaces?

Various types of lifting equipment are designed to work with constraints such as small ceiling heights or narrow aisle widths. Additionally, when your industrial facility is a hive of activity, the space limitations may also be due to a lack of free floor space.

At Metreel, our lifting equipment for tight spaces includes wall and floor mounted jib cranes. Fixed to a wall or column, jib cranes swing loads in an arc without needing floor-based equipment. Jib cranes also have the advantage of attaching to vacuum lifters, enabling the lifting of flat and smooth loads (i.e. glass, panels or sheet metal) while requiring virtually no lateral space.

Where jib cranes are particularly ideal is when the lifts are both repetitive and predictable. For instance, when used for machine loading, packaging stations, work cells or maintenance bays. If the motion is repeated within a known swing radius, a jib crane increases speed and consistency.

Compared to forklifts or gantry cranes, jib cranes stay fixed in place which works to reduce traffic congestion and it also eliminates aisle interference. In tight manufacturing spaces, that’s a major advantage.

Outside of the jib cranes we sell, our other lifting equipment suitable for confined spaces includes portable gantry cranes and chain hoists.

Should you need any help selecting the right lifting equipment to suit your needs, please contact us for tailored advice.

When Is A Jib Crane Not Ideal?

Jib cranes are best suited to lifts that are localised, repetitive, under moderate capacity and within a fixed radius.

When your lifting requirement falls outside of these parameters, another type of crane would be a better fit for your needs.

For example, overhead bridge cranes are ideal for moving loads across the entire building. Likewise, a gantry crane is great for outdoor lifting across a wide area. Or, when there is a need to set up a crane in multiple locations, a mobile crane (portable gantry crane) would be better suited.

Finally, for lifting extremely heavy industrial loads (i.e. 20+ tonnes) a heavy-duty bridge crane is needed to ensure safety and reliability.

At Metreel, we specialise in various types of cranes to accommodate the different lifting requirements your application may call for. In the event a jib crane isn’t the best fit, please check out our other material handling solutions on our website or our brochure.

Can A Jib Crane Be Installed Outdoors?

Yes, it is possible to opt for an outdoor jib crane installation. However, our approach to your jib crane installation would be slightly different, owing to the environmental factors that the crane will be subjected to. In short, this requires us to ensure your jib crane has proper wind design, corrosion protection, weatherproof electrical systems and a reinforced foundation.

Examples of where installing a jib crane outside can be advantageous include in shipping yards, outdoor maintenance areas, outdoor construction material handling or within vehicle loading and unloading areas.

If an outdoor jib crane would be a better fit for your application, the Metreel team can customise how your crane is built and installed in response.

Where Does Metreel Install Jib Cranes?

Metreel manufactures jib cranes at our locations in Derbyshire, UK. However, we install our jib cranes worldwide. If your company is based in the United Kingdom or further afield you are looking to buy a jib crane, please get in touch.
