Conductor Systems

Flexible with energy!

Enclosed Conductor Systems

Metreel have an excellent range of conductor systems designed to be a safe reliable power supplier for cranes, hoisting equipment, warehouse equipment, overhead conveyor tracks etc.

Four different conductor systems which can be tailored to suit your particular requirements, these are:

4Ductor®

4 pole continuous copper conductor system

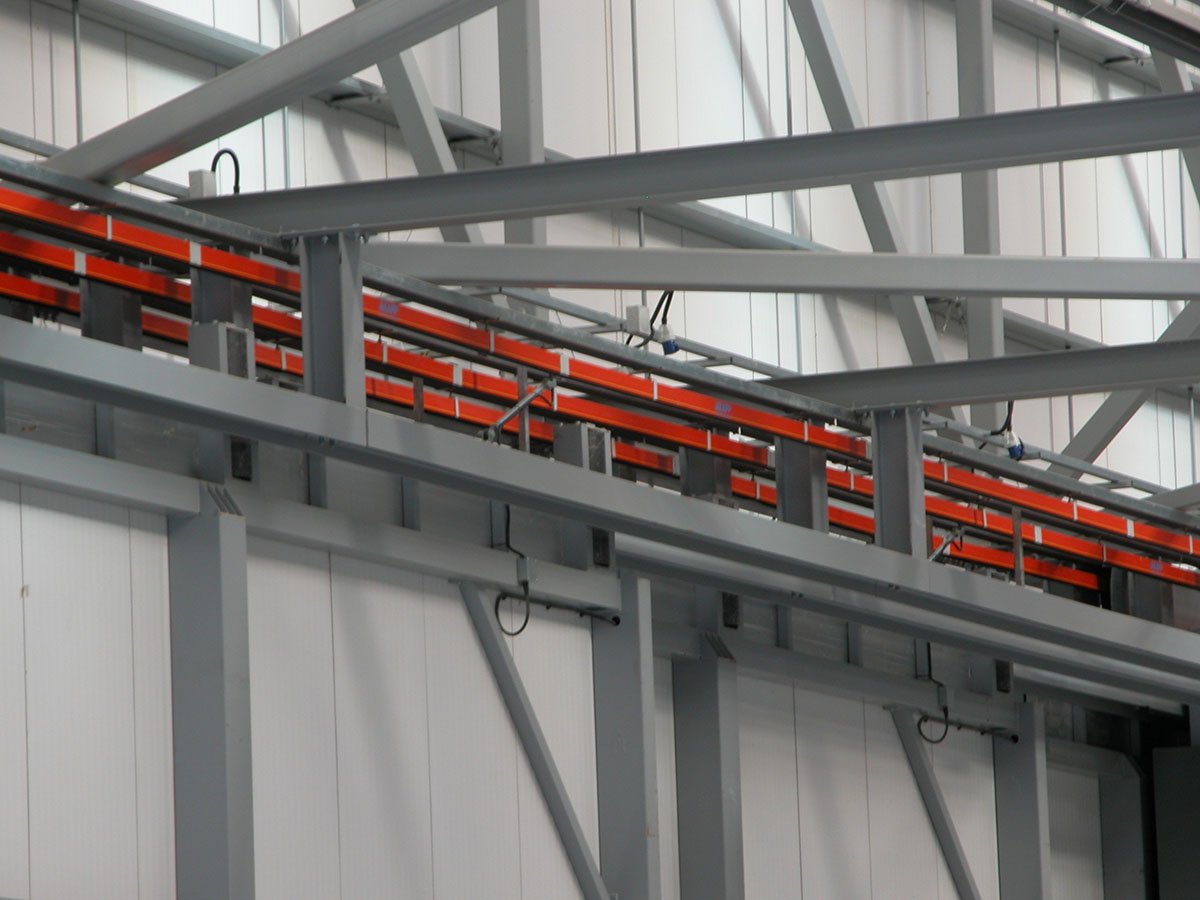

4Ductorcrane608 from Metreel

ClickDuctor®

4 and 7 pole jointed copper conductor system

Haystacker 02 from Metreel

Multiconductor®

7 pole continuous copper conductor system

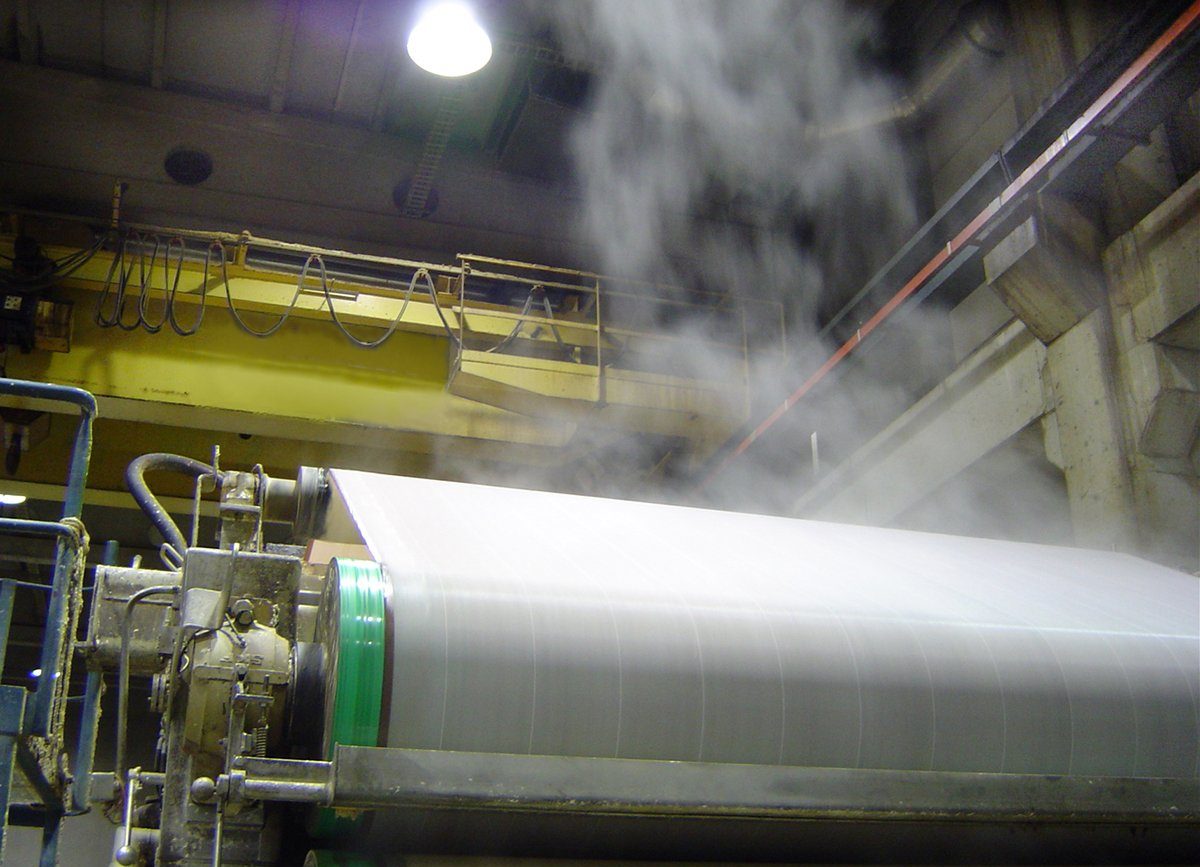

Concrete industry from Metreel

ProDuctor®

7 and 10 pole continuous conductor system for automated storage and retrieval systems

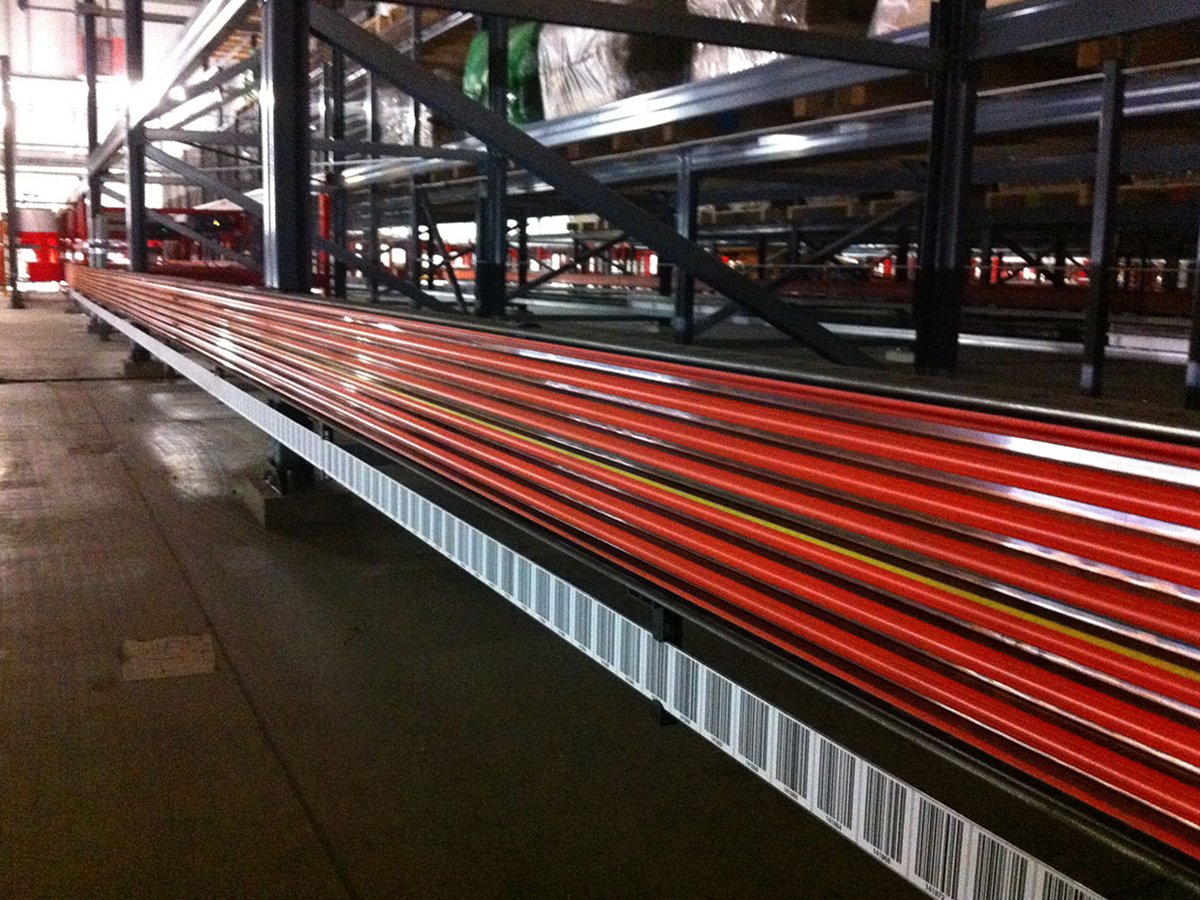

Warehouse01 from Metreel

Download our brochure

Take a look at our brochure today and find out more about our products

Key Features

Optimum Reliability is assured by the advantages listed below:

  • Low maintenance – PVC housing needs no maintenance as the systems are designed with minimal brush wear
  • Maximum power transmission
  • Quick and easy installation
  • No expansion problems
  • Extremely long system lengths
  • High travel speeds available
  • High mechanical strengths – the PVC housing has a combination of high flexural yield, impact and tensile strengths
  • Self-extinguishing
4DuctorClickDuctorMulticonductorProDuctor
No. of Conductors4> 4 or 7> 7> 7 or 10
Current Capacities (A)35, 50, 80, 125, 16050, 80, 125, 160, 20035, 50, 80, 125, 16050, 80, 125, 160, 200
Parallel Capacities (A)N/A250, 320, 400250, 320250, 320, 400
Housing Lengths4m3m or 4m4m4m
Running Speed60m/min
End FedYesYesYesYes
Centre FedYesYesYesYes
Temperature Range-30°C to +60°C-20°C to +60°C-30°C to +60°C-30°C to +60°C

Reach out to an expert on our team today.

For all but ClickDuctor®, Metreel’s conductor systems offer uninterrupted copper conductors. These flat copper conductors can be pulled from rolls into the previously installed PVC housing in long continuous lengths. The fixed electric feed point can be placed at either the end (End fed) or at a convenient point anywhere along the system (centre fed).

from Metreel
from Metreel

Optimal Contact
The flat, smooth copper surface guarantees an optimal contact with the carbon brush.
No Plug Connections
The best method to reduce voltage loss is an uninterrupted copper conductor. This is essential when it concerns reliable transmission of control signals.
Capacity Extendable
The installation can be extended at all times and at any moment. For instance, due to a changed situation, additional or heavier copper conductors can be installed.
Extremely Low Maintenance
Due to the absence of plug connections the surface of the copper conductors is extremely smooth, which ensures minimal brush wear. The copper conductors as well as the carbon brushes are therefore extremely low maintenance.

Alternative Strips
Sliver-plated strips can be installed in the channels, for use in extreme weather conditions or other challenging applications
Quick Installation
The strips can quickly and easily be pulled into the channels, using the copper cassette and a copper puller

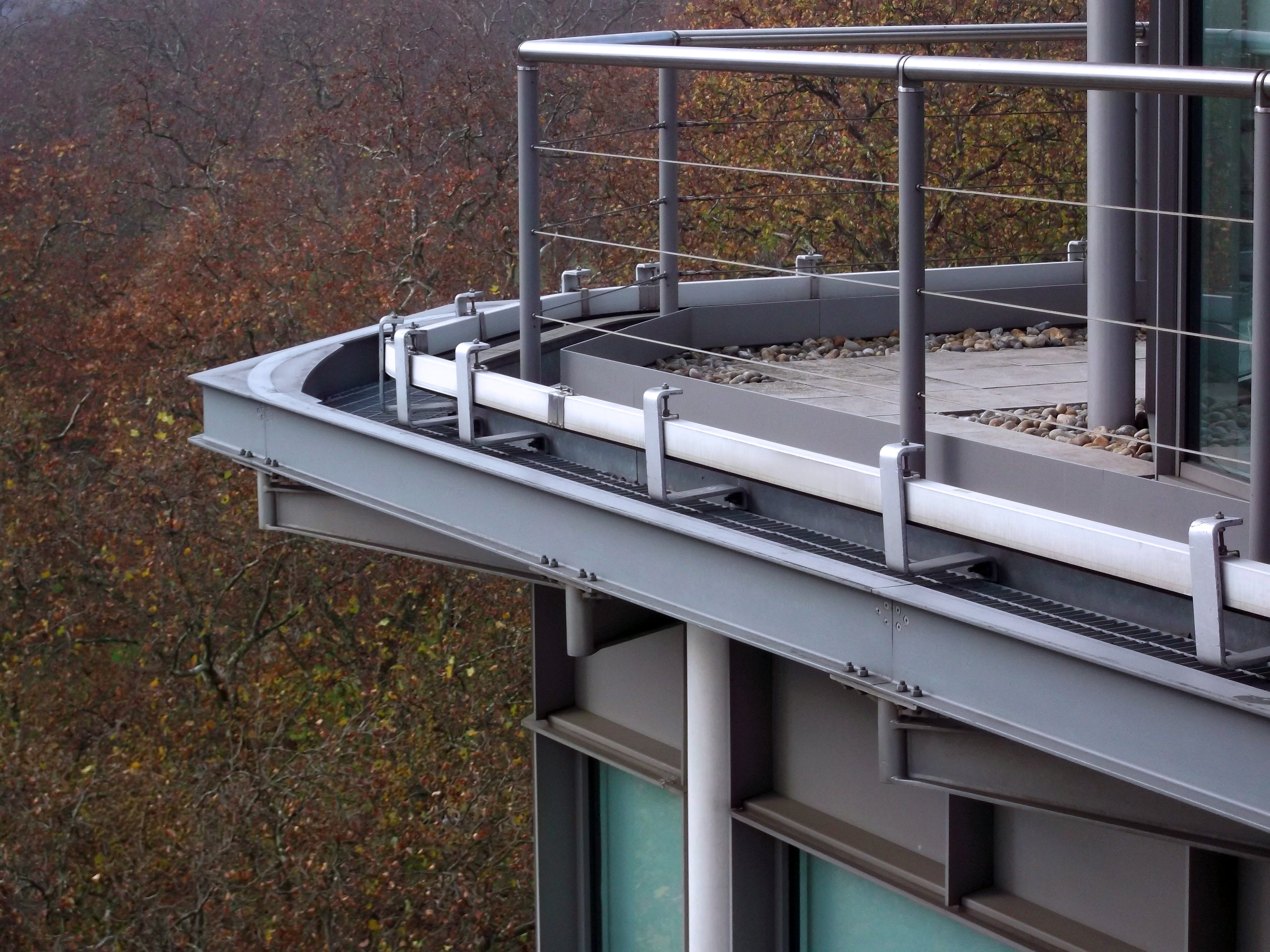

Accommodation of Curves
With our uninterrupted copper conductor systems a range of curves/bends are available on request.

from Metreel

Advantages of uninterrupted copper conductors

  • Optimal contact – the flat, smooth copper surface guarantees optimal contact with the carbon brush
  • No plug connection – the best method to reduce voltage loss is an uninterrupted copper conductor.
  • Extended capacity
  • Extremely low maintenance
  • Alternative sliver-plated strips – For extreme weather conditions or other challenging applications
  • Quick installation
  • A range of curves/bends are available on request
