ClickDuctor®
4, 5 or 7-pole jointed copper conductor system from Akapp-Stemmann
Download our brochure
Take a look at our brochure today and find out more about our products
| Feature | Specification |
|---|---|
| Conductor types | CU50, CU80, CU110, CU125, CU160, CU200 (electrolytic copper) |
| Max conductor length | Up to 800m (varies by capacity) |
| Voltage rating | Up to 690V (CE/CCC), 600V (UL) |
| Protection class | IP44 (IP23 without seal) |
| Temperature range | -20°C to +50°C |
| Max speed | Up to 250 m/min, depending on the conductor and trolley type |
| Housing material | Rigid unplasticised PVC, grey/red |
| Mounting options | Sliding hangers, fixed clamps, various support brackets |
Why Choose the ClickDuctor®?
The ClickDuctor® provides optimum reliability with these features:
- Long track lengths – Track lengths up to 800m (including central feed)
- High current capacity – Available in 50A, 80A, 110A, 125A and 160A, 220A options to meet varied power demands

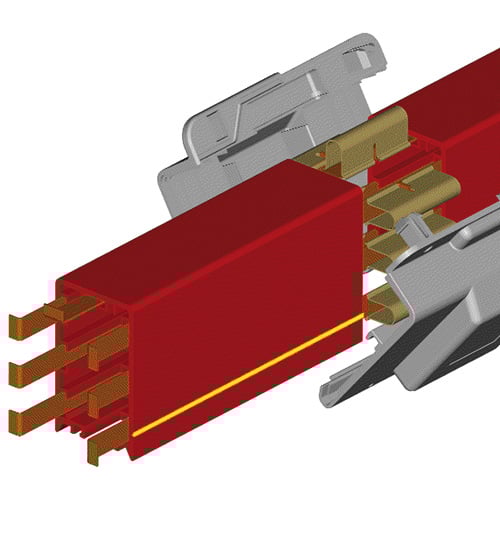

- Simple installation – Click system with connectors and joint clamps without screws makes installation easy
- Dust, moisture & humidity resistant – Flexible sealing strips can fully close the conductor housing, making them perfect for all environments
- Safety-first design – IP44 (with sealing strip), IP23 (without sealing strip). The PVC housing is self-extinguishing, impact-resistant, and ensures high personnel protection.
- Easy to remove rail sections – The housing can easily be removed without affecting or moving other housing
Available Accessories
- Collector trolleys – For standard or high-speed travel, with options for curves and expansion joints
- Transition boxes & Towing arms (trolley accessories) – Safe and easy connection to the apparatus
- Feed boxes – End and line feed boxes in multiple configurations (M32, M40, M63 glands)
Service & Support
Metreel offers full support from specification and supply through to installation and maintenance. Our team can advise on the best configuration, assist with system design, and even carry out installation via our experienced engineers.
With Metreel, you’re partnering with a fully accredited and insured team with a proven track record in delivering durable, high-spec power supply systems for industrial environments.
