PowerPOZ®

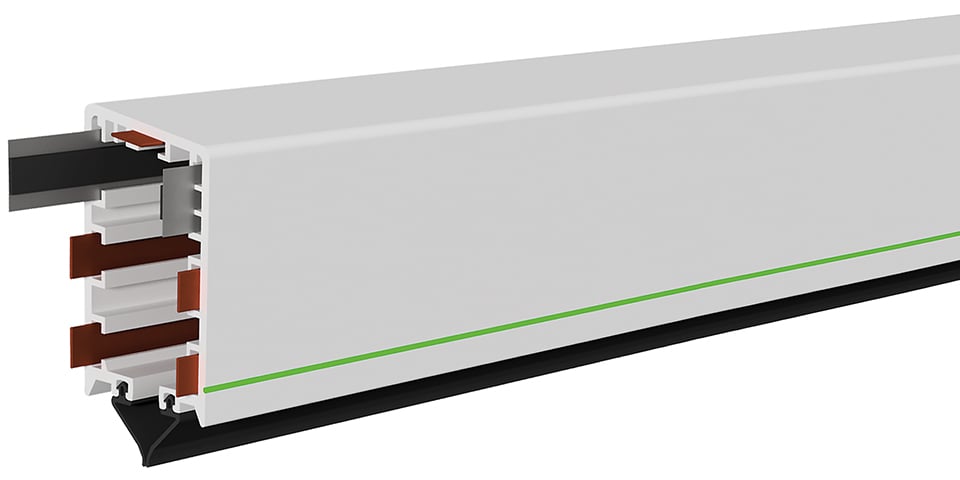

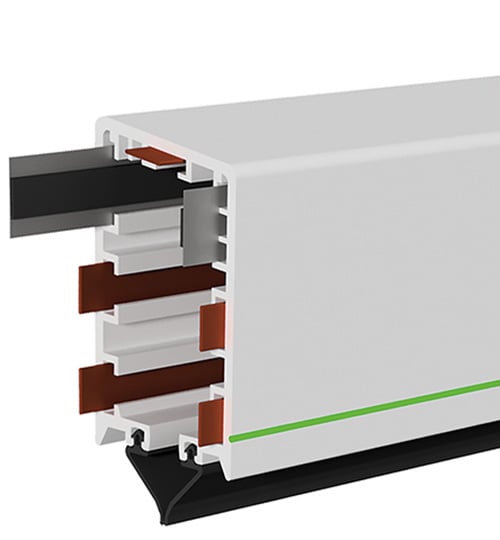

5-pole conductor system from Akapp-Stemmann
Download our brochure
Take a look at our brochure today and find out more about our products
| Feature | Specification |
|---|---|
| Conductor types | CU160 |
| Max conductor length | 520m (with position magnetic strips) |
| Voltage rating | Up to 690V (CE/CCC), 600V (UL)? |
| Protection class | IP44 (IP23 without seal), IP67 (sensors) |
| Temperature range | -10°C to +60°C |
| Max speed | Up to 240 m/min |
| Housing material | Rigid unplasticised PVC |
| Mounting options | Drawing tool, Sliding hangers, fixed clamps, various support brackets |
Why Choose the PowerPOZ®?
The PowerPOZ® offers unique features
- High current capacity – 160A
- High travel speeds – Up to 240 m/min
- Long lengths – Up to 520m with 2 magnetic positioning tapes (260m without)
- Self-resetting position – Resets, if necessary, after position signal loss
- Curved installed – Horizontal and vertical
- Safety-first design – IP44 (with seal), IP67 (Sensor)-rated. PVC housing is self-extinguishing, impact-resistant, and ensures high personnel protection
- Dust, moisture & humidity resistant – Flexible sealing strips can fully close the conductor housing, making them perfect for all environments
Available Accessories

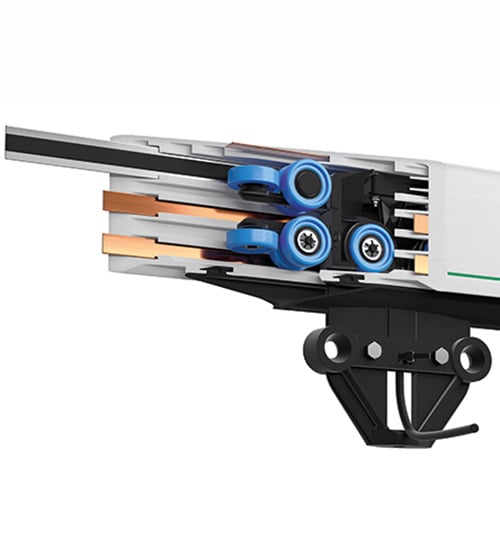

- Collector trolleys – For standard or high-speed travel, with options for curves and expansion joints
- Transition boxes & Towing arms (trolley accessories) – Safe and easy connection to the apparatus
- Feed boxes – End and line feed boxes in multiple configurations (M32, M40, M63 glands)
- Curved tracks – horizontal and vertical
Service & Support
Metreel offers full support from specification and supply through to installation and maintenance. Our team can advise on the best configuration, assist with system design, and even carry out installation via our experienced engineers.
With Metreel, you’re partnering with a fully accredited and insured team with a proven track record in delivering durable, high-spec power supply systems for industrial environments.
